Product Description
General Electric
MPN: 5CD675PA011B002
USED
Model: 5CD675PA011B002 - Serial: UL-4-8 - Type: CD6778
HP: 1000 - RPM: 850/1000 - Arm Volts: 500 - Arm Amps: 1580 - Encl: SPFG-SV
Wound: Shunt - Duty: Cont - Max Ambient: 40 Deg C - Insul Class: F - Pwr Sup Code: C
DE Brg: 894A605 029 - CE Brg: 894A605 029 - Brush: (36) 36A164453AA005
Instr: GEH 5359 - SV 5000CFM at 5.0 in of water / CE & DE Brgs 180BC02X3
200% Overload 60 sec occasional 1.15 S.F. - Motor Weight: 15600 lbs
For 240 Volt Nominal Field: FLD Amps: 21.0 / 17.4 - FLD Ohms 25 Deg C: 7.96
For 120 Volt Nominal Field: FLD Amps: 42.0 / 34.8 - FLD Ohms 25 Deg C: 1.99
List Price (in 2011): $495,774
This DC Motor was never put back into service after being fully rebuilt by Electric AC Corp.
- We have all supporting rebuild documentation from Electric AC Corp. on file (there are pictures of the documentation in this listing as well) -

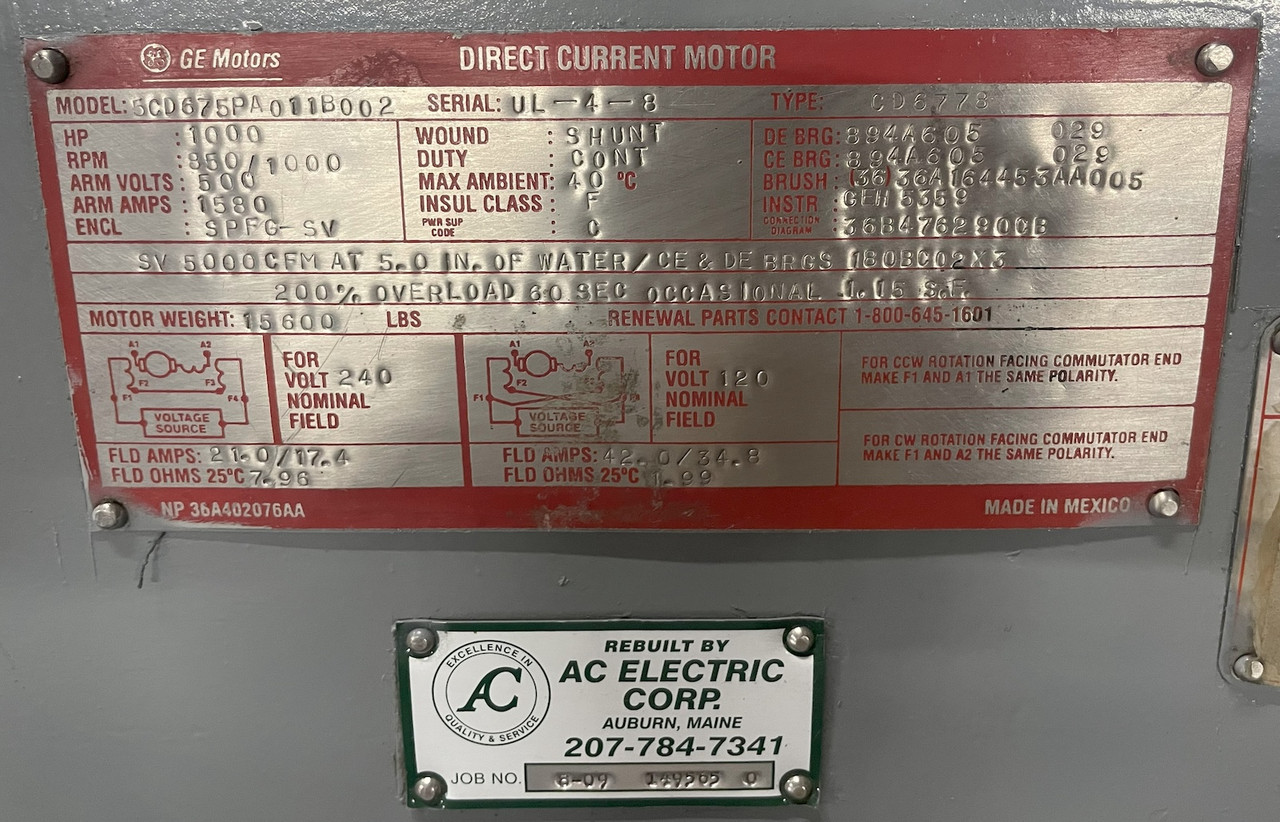

- Listing Includes Picture of Nameplate -
Appr Shaft Dim: 6-7/8" Diameter x 14" Length
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures, please visit our FAQs or contact us :
423 821-4712 - Sales@RiverCityIndustrial.com
Additional Information
- SKU:
- PM3223
- UPC:
- 721749842736
- Condition:
- Used
- Availability:
- Ships within 0-1 business days of full payment. Expedited shipping available.
- SKU:
- PM3223
- MPN:
- 5CD675PA011B002
- Approx Shipping Dims (LxWxH):
- 90.000" x 46.000" x 46.000"
- Approx Shipping Weight:
- 16000.0000
- Location:
- Z 48A
- Horsepower:
- 1000 HP
- Amperage:
- 1782 Amp
- Voltage:
- 500 VDC
- Listed:
- 10/22/2024
- UPC:
- 721749842736
- eBay Listing:
- 276697495651
