Product Description
General Electric
7700 Series
MPN:
USED

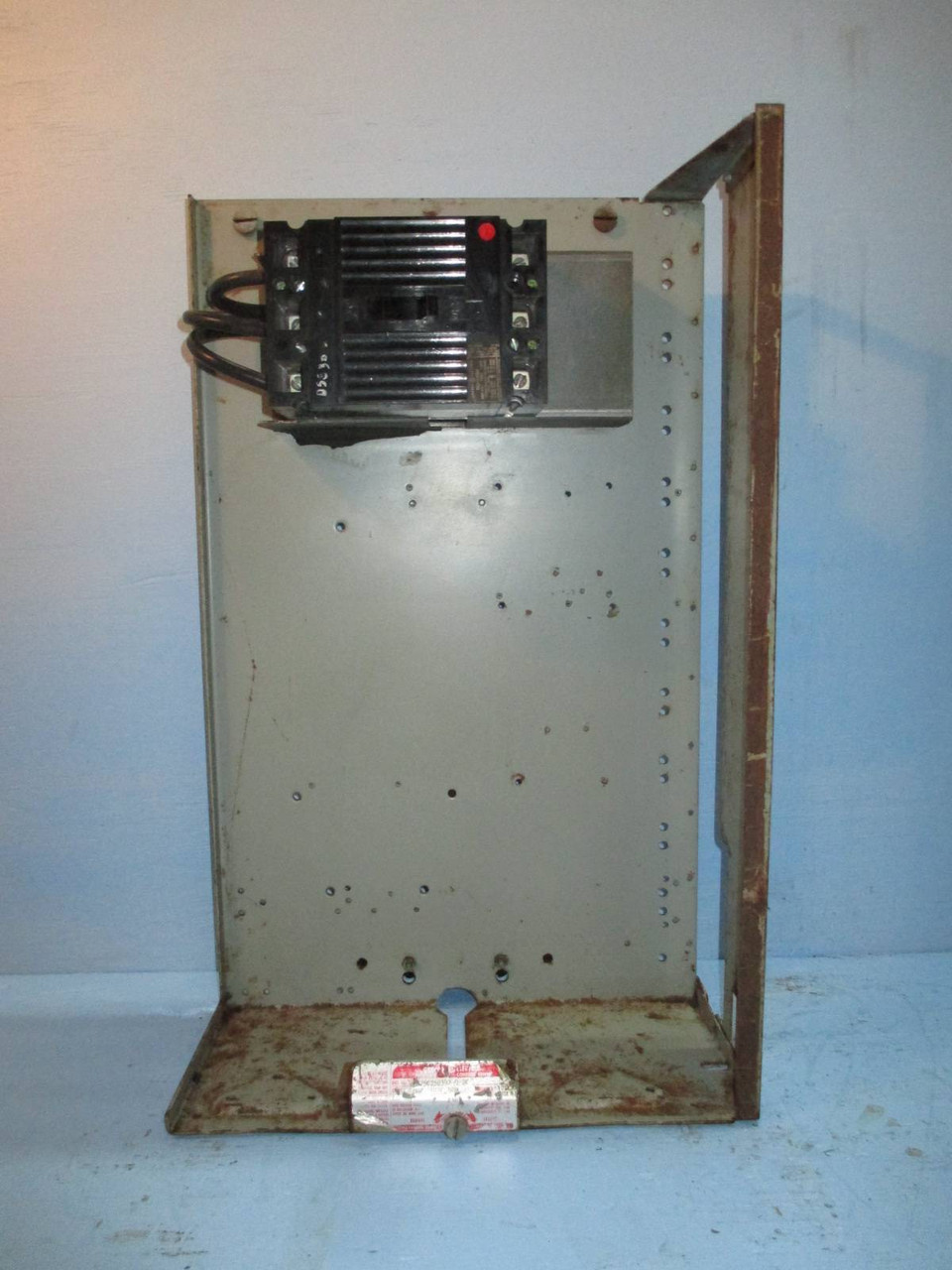

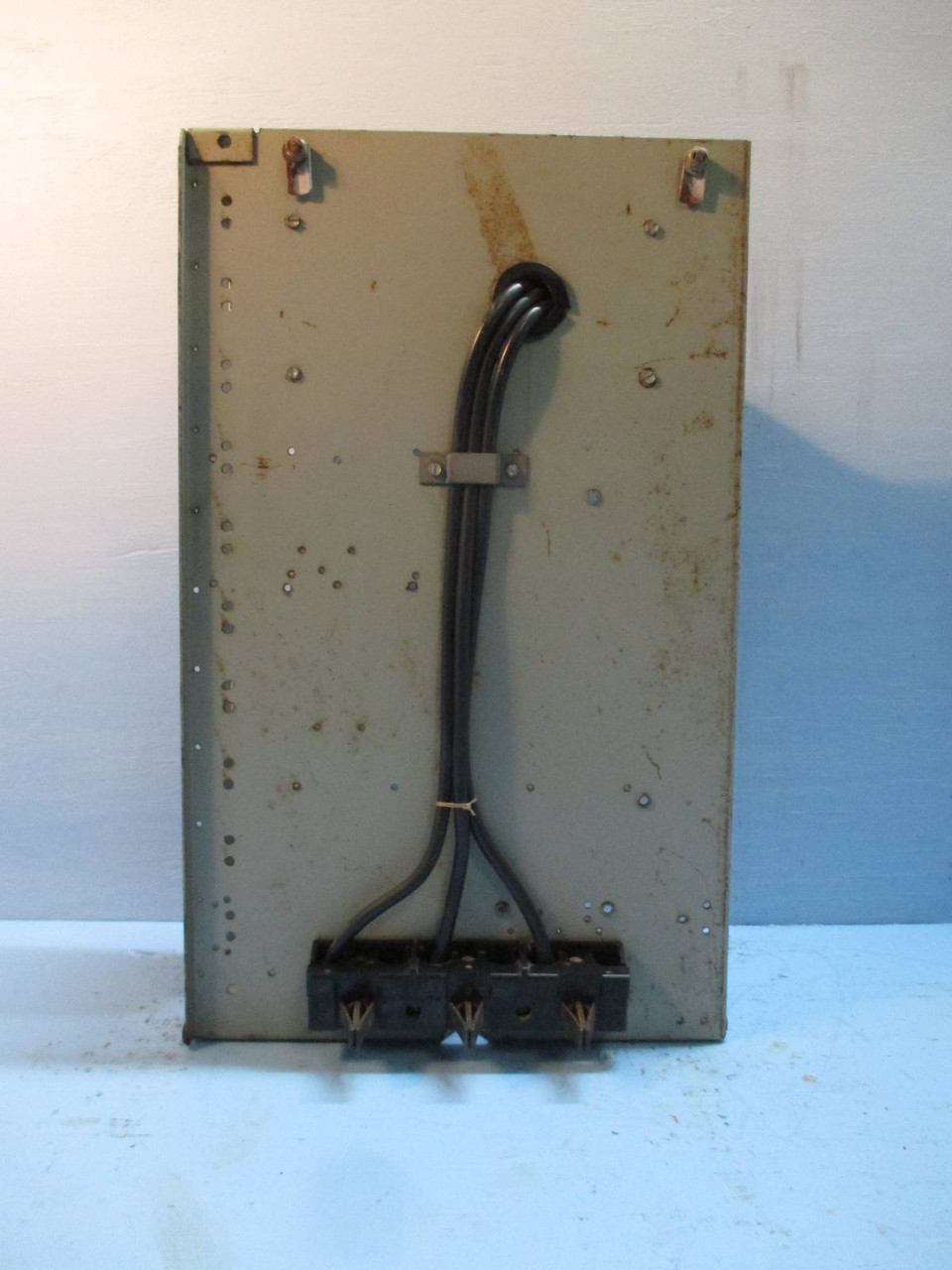

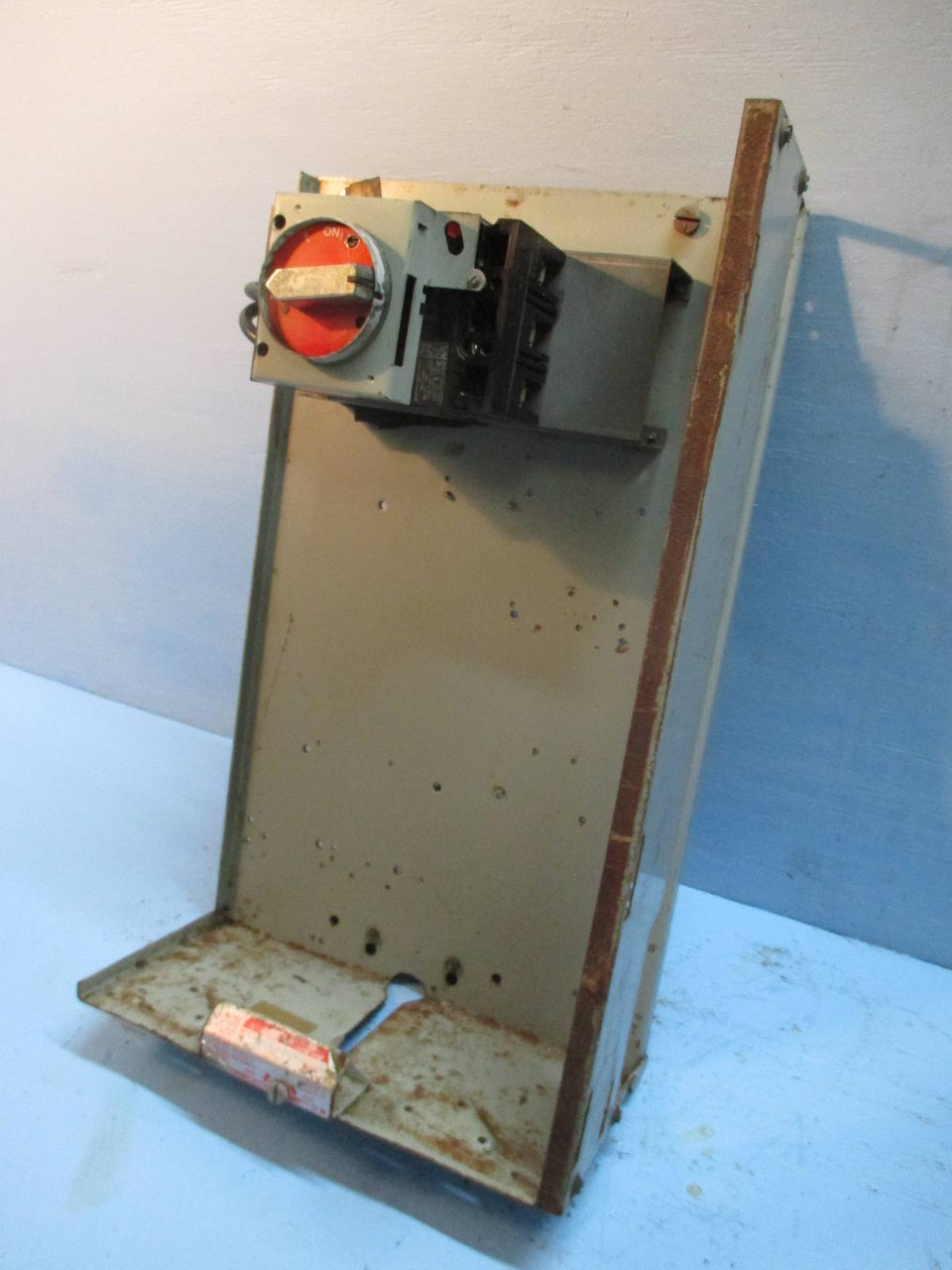

Motor Control Center Breaker Type Feeder Bucket
24 inch - 100 Amp
General Electric 7700 Series Buckets also fit into the following MCC's:
GE 8000 Series
Doors may be available upon request.
Buckets include 100 Amp Breaker.

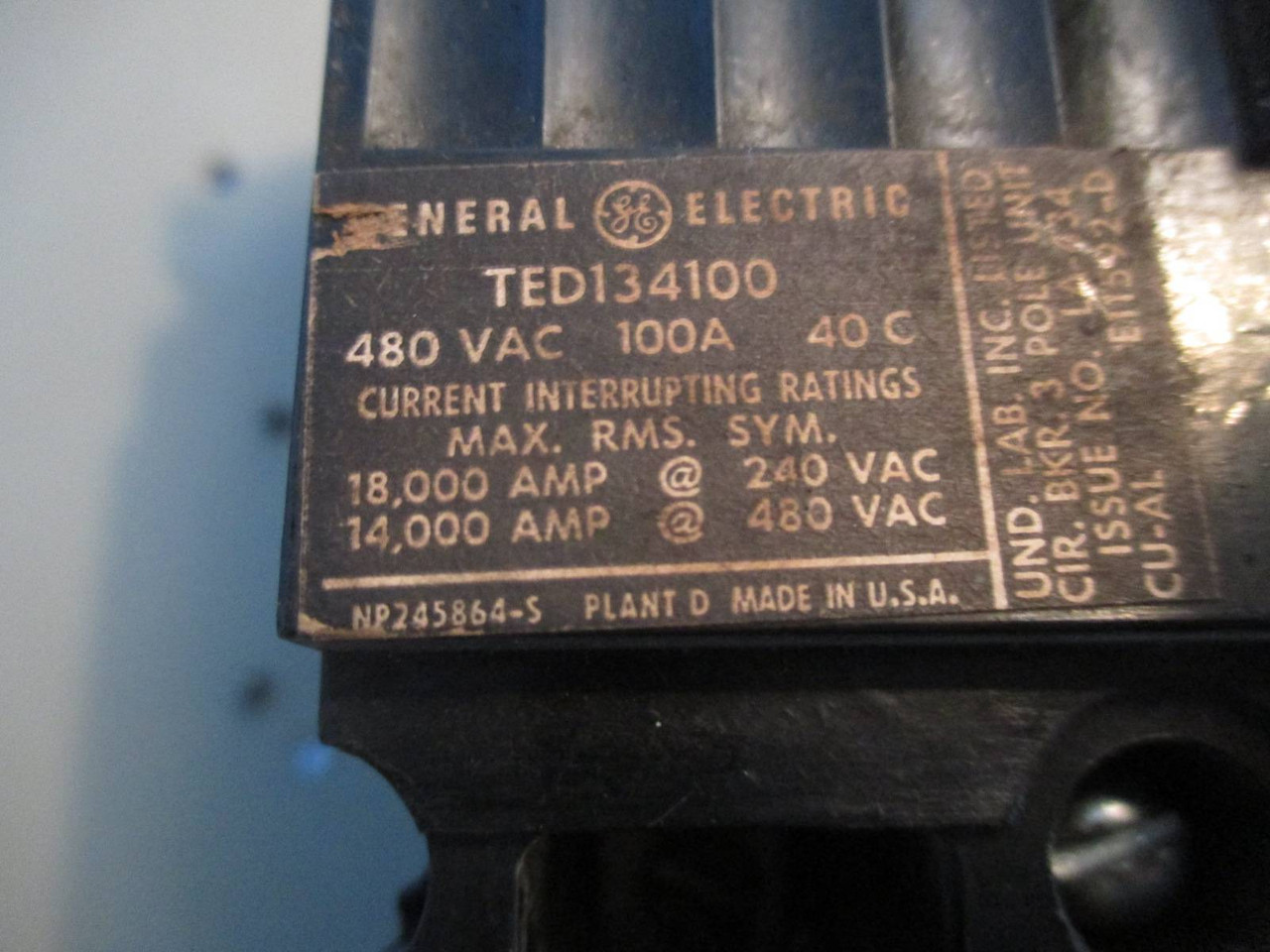

General Electric Circuit Breaker
Cat. No. TED134100
100 Amp - 3 Pole - 480 Vac
These Buckets will hold breakers up to 100 Amps.
We have various breakers in stock that fit into these buckets (TED, etc.).
If you buy breaker(s) from our stock, we will install it into the bucket(s) free of charge.
Approximate Dimensions: 14" x 24" x 11"
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures, please visit our FAQs or contact us :
423 821-4712 - Sales@RiverCityIndustrial.com
Additional Information
- SKU:
- TK0802
- UPC:
- 782451010028
- Condition:
- Used
- Availability:
- Ships within 0-1 business days of full payment. Expedited shipping available.
- SKU:
- TK0802
- NEMA Starter Size:
- Feeder
- Breaker or Fusible (MCCBs):
- Breaker
- Listed:
- 8/17/2015
- Approx Shipping Dims (LxWxH):
- 28.000" x 18.000" x 18.000"
- Approx Shipping Weight:
- 28.0000
- Location:
- G 81E ; G 81C
- eBay Listing:
- 353074955217
- UPC:
- 782451010028
- Amperage:
- 100 Amp
- MCCB Height:
- 24 in
