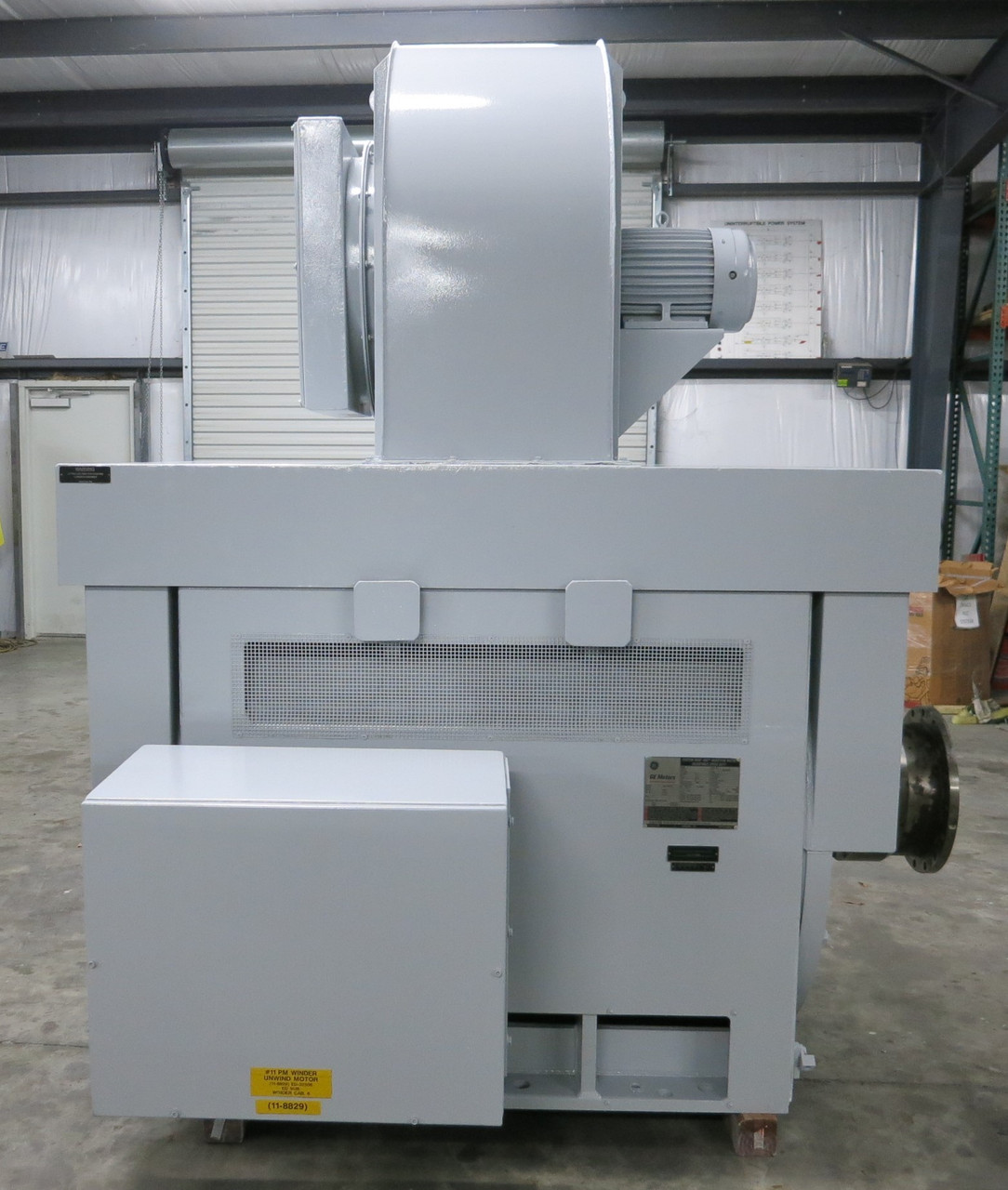

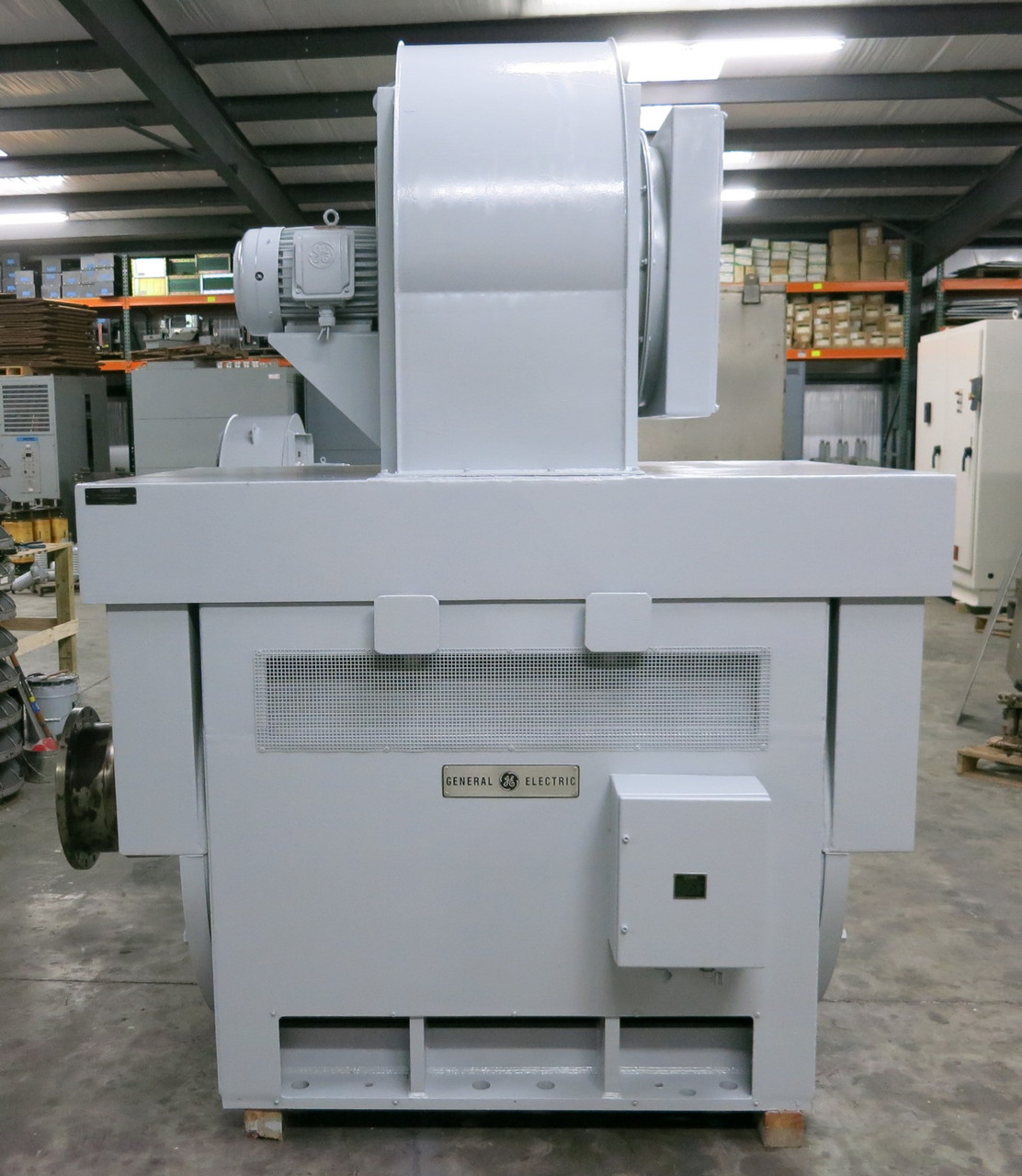

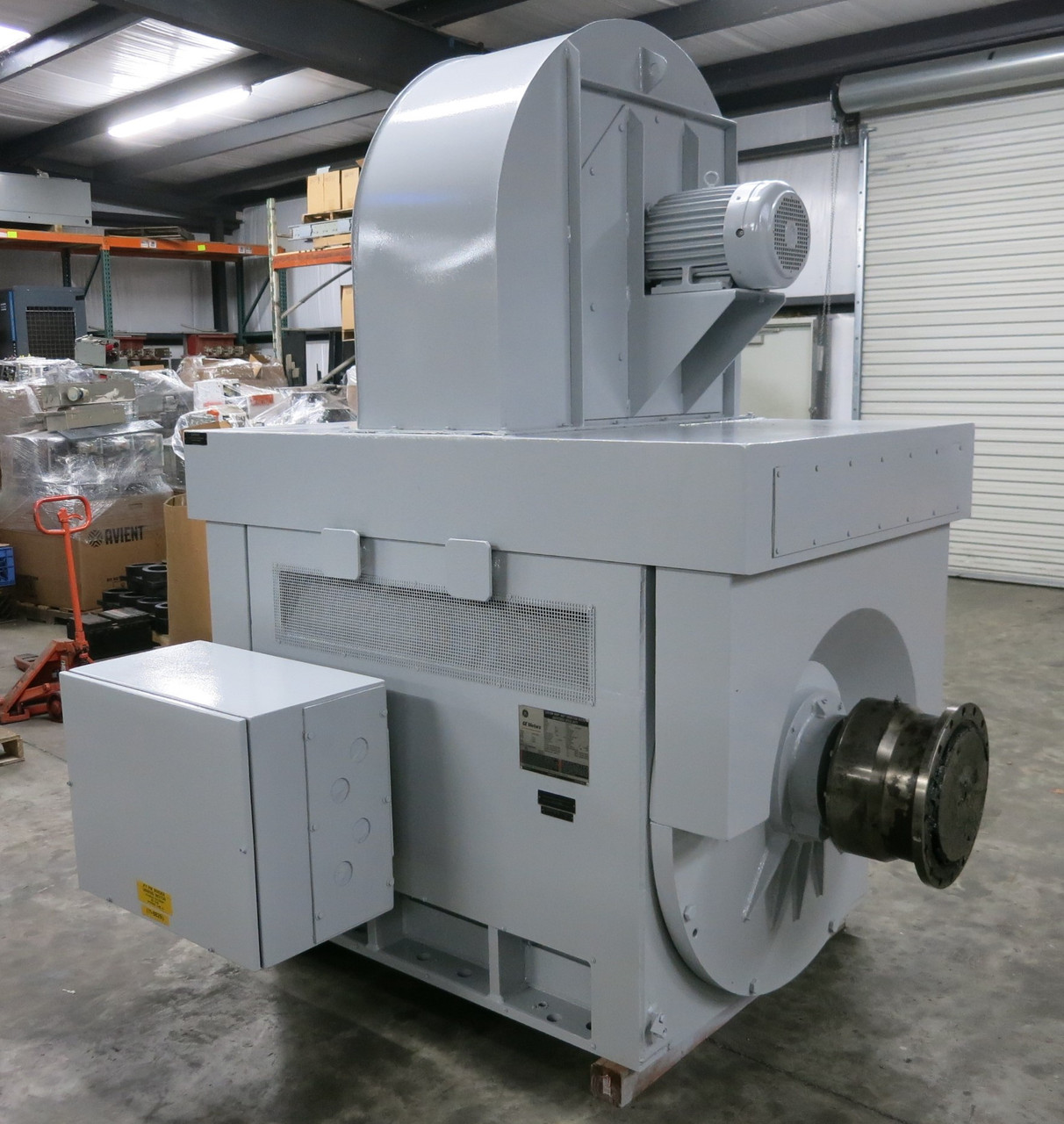

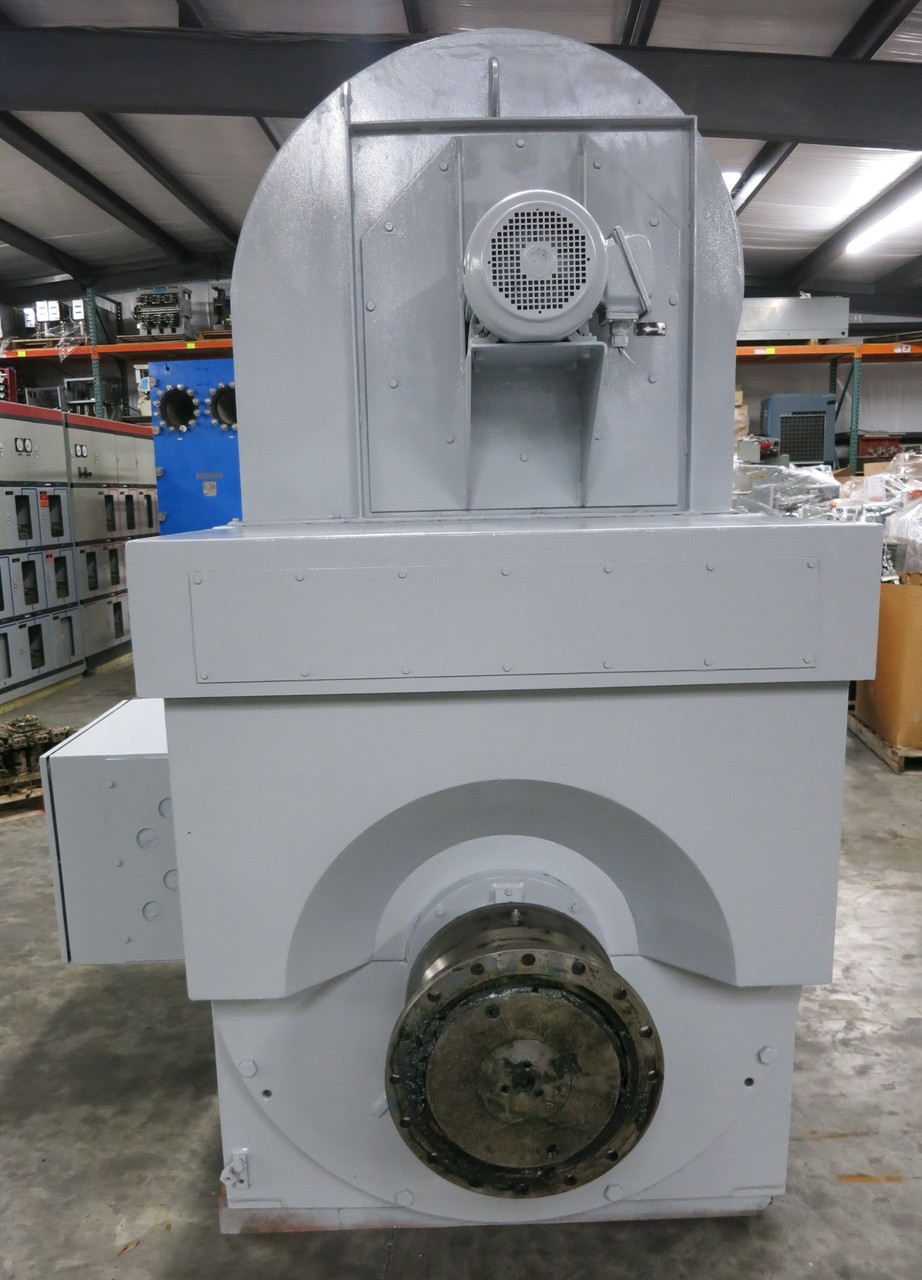

GE 5KAF8507H00001 550HP 250RPM 370V 8507Z KAF DPBV AC 8000 Induction Motor 460V (PM3188-1)
SKU:
PM3188
General Electric
GE Motors
MPN: 5KAF8507H00001 - 8507Z
USED
Custom 8000 A$D Induction Motor Adjustable Speed Duty
Bearings Excellent and Shaft Turns EasilyThis motor was only in operation for a few months and professionally removed by us from a fully operational Paper Mill line
Stored in an Environmentally Controlled Warehouse
- Nameplate Information -
Model: 5KAF8507H00001 - Serial No: OSH 285000374 - Power: 550 HP - Type: KAF - Enclosure: DPBV
RPM Base: 250 - Frame: 8507Z - Amperes: 829 - Drive End Brg: 160BC02J - Volts: 370 - Vmax: 460 - Phase: 3
Hertz: 60 - Eff: 90.0% - PF: 0.858 - Opp Drive End Brg: 160BC02J - Service Factor: 1.15 - Sine: 1.00 ASD
Insulation Class: F - Max Temp Rise: 115 Deg C at SF Stator By RTD - Time Rating: Continuous
Inverter Type: PWM - Suitable for Operation from 0 to 250 RPM at Constant Torque
Weights (LB): 5700 Stator, 3600 Rotor, Top Hat: 1100, Total 12400
- Direction of Rotation Facing: ODE -
CCW with T1, T2, T3 Phase Seq. - CW with T1, T3, T2 Phase Seq.
- Video Link to Shaft Being Turned -
https://youtu.be/Yic-PoaOfc8
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures please visit our FAQs or contact us:
423 821-4712 - Sales@RiverCityIndustrial.com
