Product Description
General Electric
GE
MPN: M 157856
USED

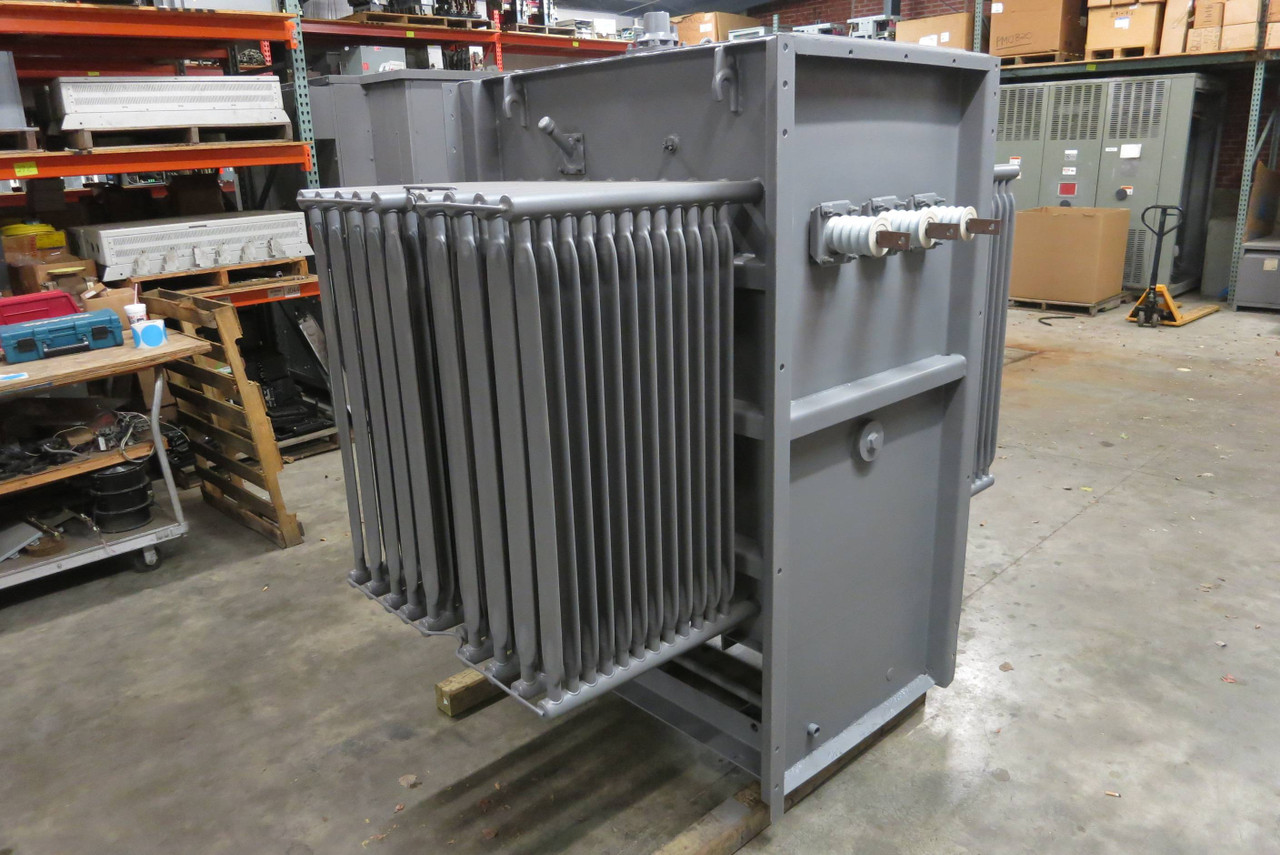

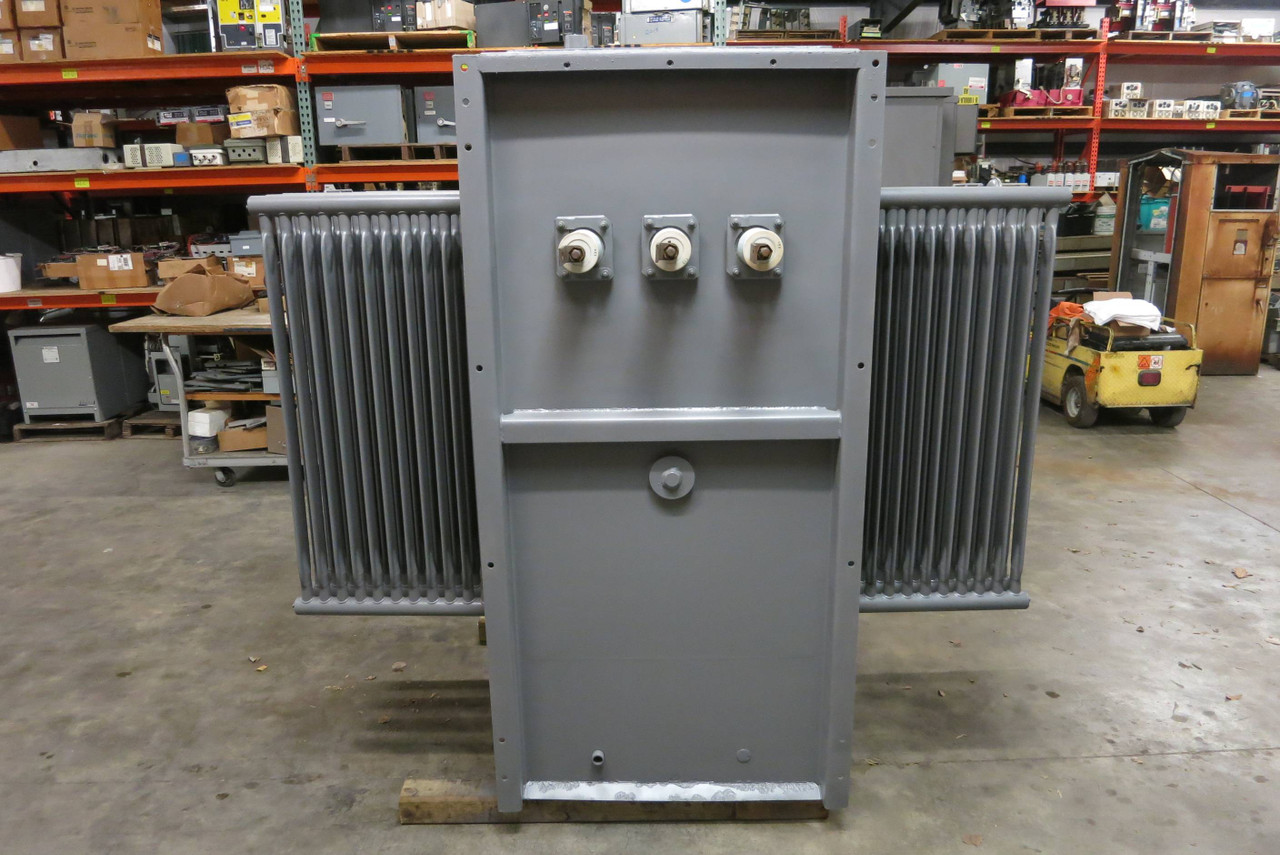

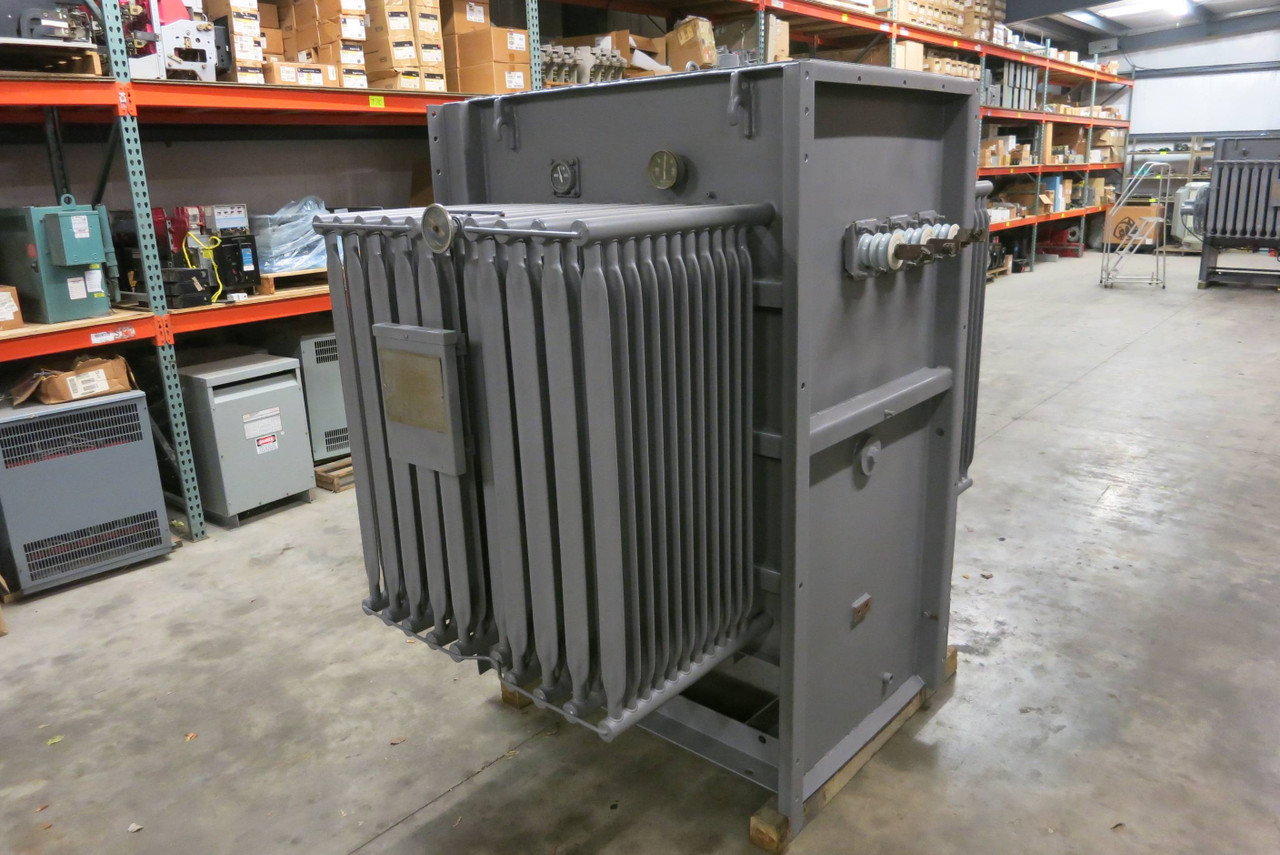

Three Phase Oil Filled Padmount Transformer

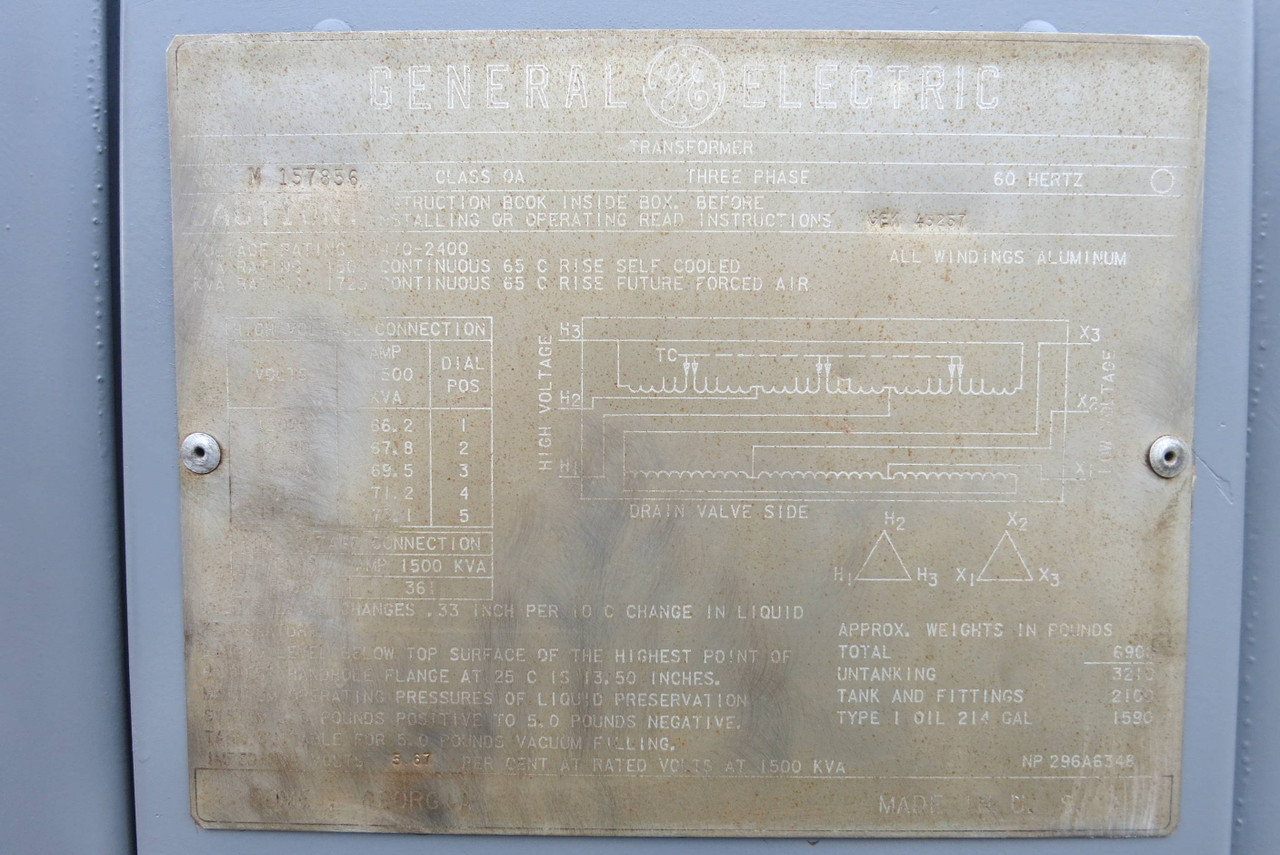

Unit comes completely filled with oil to manufacturer's specifications.- Nameplate Information -
Serial No: M 157856 - Class: OA - Three Phase - 60 Hertz
Voltage Rating: 12470-2400
kVA Rating: 1500 Continuous 65 Deg C Rise Self Cooled
kVA Rating: 1725 Continuous 65 Deg C Rise Future Forced Air
- High Voltage Connection -
Volts - Amp - Dial Position
13090 - 66.2 - 1
12780 - 67.8 - 2
12470 - 69.5 - 3
12160 - 71.2 - 4
11850 - 73.1 - 5
Low Voltage Connection: 2400 Volts @ 361 Amp 1500 kVA
- Approx Weighs in Pounds -
Total: 6900 - Untanking: 3210 - Tank and Fittings: 2160 - Type 1 Oil 214 Gal: 1590
Impedance Volts: 5.67 % at Rated Volts at 1500 kVA
30 day warranty on all purchases.
Your purchase will include what is pictured and described above ONLY.
For more info or pictures, please visit our FAQs or contact us :
423 821-4712 - Sales@RiverCityIndustrial.com
*This chart is for reference ONLY. See specific item and manufacturer for accurate specs on specific items.
| kVA | 208V | 240V | 480V | 600V |
| 3 | 8.3 | 7.2 | 3.9 | 2.9 |
| 6 | 16.7 | 14.4 | 7.2 | 5.8 |
| 9 | 25 | 21.7 | 10.8 | 8.7 |
| 15 | 41.6 | 36.1 | 18 | 14.4 |
| 30 | 83.3 | 72.2 | 36.1 | 28.9 |
| 45 | 125 | 108.3 | 54.1 | 43.3 |
| 75 | 208.2 | 180.4 | 90.2 | 72.2 |
| 112.5 | 312 | 271 | 135 | 108 |
| 150 | 416 | 361 | 180 | 144 |
| 225 | 625 | 541 | 271 | 217 |
| 300 | 833 | 722 | 361 | 289 |
| 500 | 1388 | 1203 | 601 | 481 |
Additional Information
- SKU:
- PM3005
- UPC:
- 760377731425
- Condition:
- Used
- Availability:
- Ships within 0-1 business days of full payment. Expedited shipping available.
- SKU:
- PM3005
- MPN:
- M 157856
- Approx Shipping Dims (LxWxH):
- 65.000" x 83.000" x 82.000"
- Approx Shipping Weight:
- 7000.0000
- Location:
- D Floor
- kVA:
- 1500 kVA
- Phases:
- 3 Phase
- Listed:
- 10/21/2019
- UPC:
- 760377731425
- eBay Listing:
- 372812993378
